High Shear Mixer Homogenizer

Submicron homogenizing, high shear wet milling, micronization

The Quadro^® HV High Shear Mixer Homogenizer delivers high shear mixing results without the need for high-pressure processing.

Production Process Value

If your pharmaceutical, food, chemical or personal care and cosmetics application doesn’t require the highest energy levels of a dedicated high-pressure homogenizer or media mill, the Quadro^® HV-Emulsifier and Wet Mill offer better process value. The HV Series offers high shear results without the need for high-pressure processing.

The Quadro^® HV high shear homogenizer provides more process shear energy than a conventional rotor-stator mill. This significantly lowers capital costs compared to high-pressure homogenizer machines or media mills and is ideally suited for processing submicron emulsions or suspension micronization.

Versatile Equipment, Unmatched Sanitary Design

Available in two configurations, the Quadro^® HV shear mill can be optimized for homogenizing or wet milling, depending on the application. For enhanced flexibility, optional tooling can be kept on hand for one machine to allow flexible process changeovers.

Typical applications for the high shear mixer and homogenizer include:

submicron emulsions (ophthalmic, functional foods)
drug suspensions or API milling, topical formulations (pharmaceutical, cosmetics, personal care)
chemical applications (wood stains, agricultural products)

The HV Wet Mill: Innovation for Wet Suspension Milling Applications

Engineered for micronizing suspensions and slurries, this versatile wet milling equipment closes the gap between traditional rotor-stator mixers and media mill technology. Wet suspension milling and micronization processes can now be accomplished without the use of difficult-to-clean and time-consuming media mills. The HV series of flexible and efficient high-shear homogenizers is ideal for your emulsifier and homogenizer needs.

The Benefits of the Quadro® HV

Higher Shear Energy - The Quadro^®HV high shear mixer homogenizer/wet mill produces more than 55x the high shear energy of a conventional rotor-stator mill, resulting in finer size reduction and less processing time.

Production Capacity & Efficiency Improvement - When used for inline continuous operations, the HV offers a significant increase in production capacity, with a compact footprint that can easily retrofit into existing facilities.

Time Savings - Reduced process time with single-pass, on-target results.

Cost Savings - Lower capital investment than alternative technologies; in some cases, the HV accomplishes with one machine what previously required multiple pieces of equipment.

Less Maintenance Required - Reliable and robust machine design, featuring easy-to-clean, sanitary construction.

Wet Mill Benefits vs. Colloid or Media Mill

Easier to clean and validate
Highly sanitary design
Shortened processing time
Increased output value per shift (in dollars)

Wet Mill Benefits vs. Valve Homogenizer

Increased capacity
Less energy required
10% of the maintenance
30% of the cost

In detail

See the Quadro^® HV with our equipment gallery.

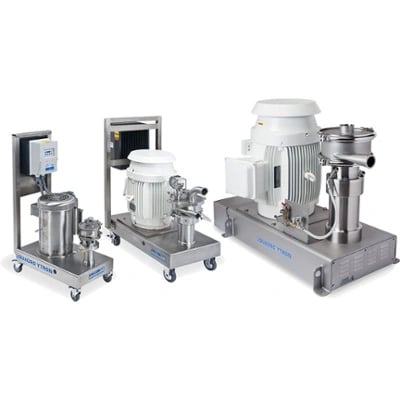

Quadro-HV-high-shear-submicron-processing-1

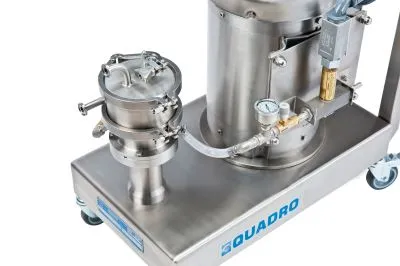

HV high shear homogenizer processor skid

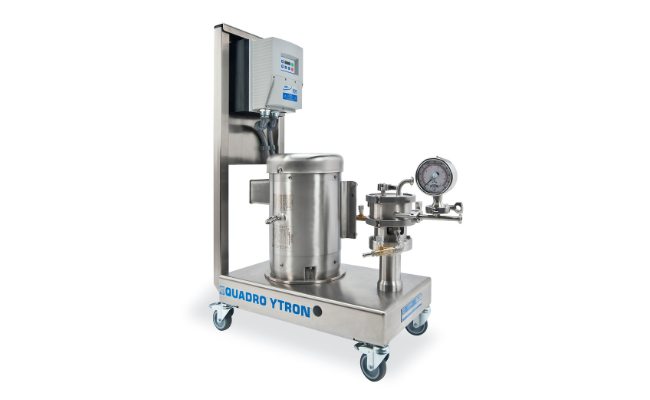

Quadro-HV-high-speed-rotor-stator-homogenizer-wet-mill-400x

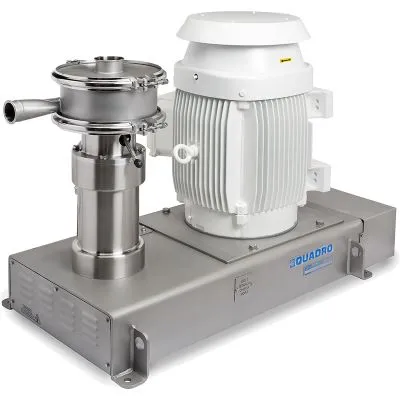

Quadro HV submicron emulsion suspension micronization wet mill

Features of the Quadro^® HV high shear homogenizer and wet mill.

Unique high-speed design of this high shear homogenizer and wet mill delivers more than 55x the high shear energy of a conventional rotor-stator mill.
Precise process scaling from lab formulation to pilot and production processing.
Machines easily retrofit into existing facilities.

High HV capacities save significant process time over conventional high-pressure homogenizers and media mills.
Unmatched sanitary and fully drainable design, assembled with quick-connect sanitary clamps for ease of removal and cleaning.
Available in portable and multifunctional process skids to serve numerous mixing cells and reduce necessary capital.

Typical applications:

Pharmaceutical
