High Speed Powder Disperser

Intense Powder Shearing

The Quadro Ytron® ZC was designed for the incorporation of difficult-to-disperse ingredients in personal care & cosmetics, food & beverage, pharmaceutical and chemical applications.

Request a quote

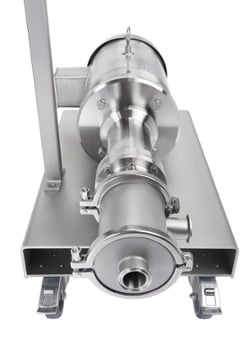

The Quadro Ytron® ZC

Intense Powder Shearing Action

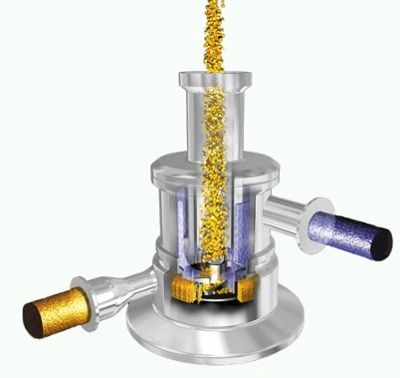

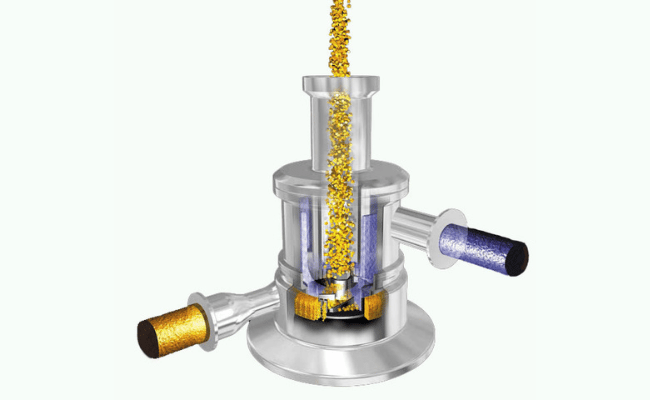

The Quadro Ytron® ZC is a high speed inline disperser used for both inline single-pass and recirculating powder dispersion applications. The ZC is uniquely engineered to incorporate and disperse even the most difficult-to-wet powders, thickening agents, and rheology modifiers into a liquid stream in a single pass, in many cases eliminating the need to use additional dispersants or wetting agents.

Dramatic Powder and Batch Time Savings

The Quadro Ytron® ZC is able to achieve a solids dispersion of up to 70% by weight depending on the product, and minimal air entrainment greatly reduces product deaeration time. Since powder is completely hydrated and free of lumps after a single pass, product yield is maximized and wastage is reduced or eliminated. The high speed dispersion and hydration performance of the ZC often results in batch time reductions of up to 90%.

Continuous Dispersion System

The Quadro® Continuous Dispersion System (CDS) capitalizes on the advanced dispersion performance of the Quadro Ytron® ZC inline powder disperser, with the unique implementation of the Quadro® Uniform Film Interface (UFI) technology to continuously disperse powders into a controlled liquid stream. The UFI powder disperser technology allows a high degree of control accuracy in continuous mixing applications, with achievable inline concentrations of 50% by weight or higher, depending on the application.

Quadro Ytron ZC Powder Disperser

Benefits of the Quadro Ytron® ZC

  • Superior Product Quality - Results are completely free of lumps and “fish eyes,” and batch-to-batch product consistency is improved.
  • Reduced Waste - Product yield is maximized and wastage is reduced or eliminated.
  • Time Savings - High speed dispersion and hydration performance result in batch time reductions of up to 90%.
  • Less Air Entrainment - Dramatically reduces product de-aeration time.
  • Scalability - Scalable solutions — from pilot to production capacities
  • Sanitary Design - Meets 3-A® Sanitary Standards

DOWNLOAD THE BROCHURE

In detail

Quadro Ytron® ZC

See the Quadro Ytron® ZC with our product gallery.
Features of the Quadro Ytron® ZC High Speed Disperser

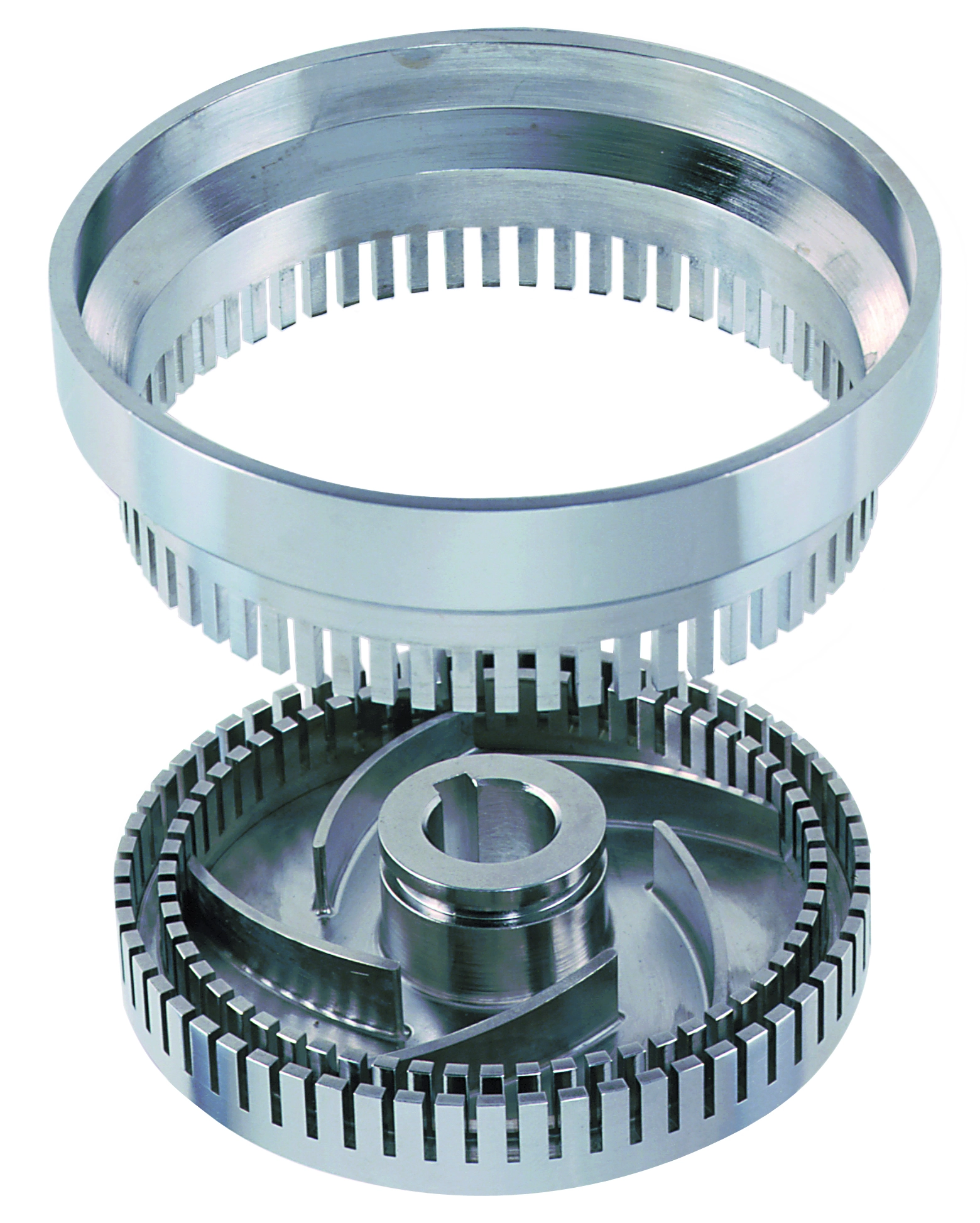

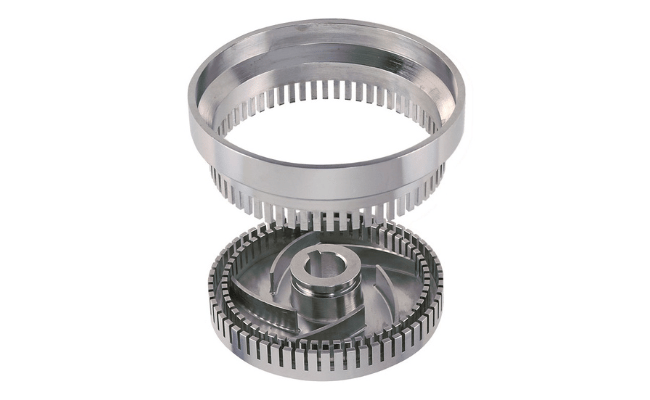

  • High shear tooling for intense powder shearing action prior to hydration

  • Steep-walled hopper for poorly flowing powders

  • Minimal air entrainment reduces or eliminates the need for deaeration

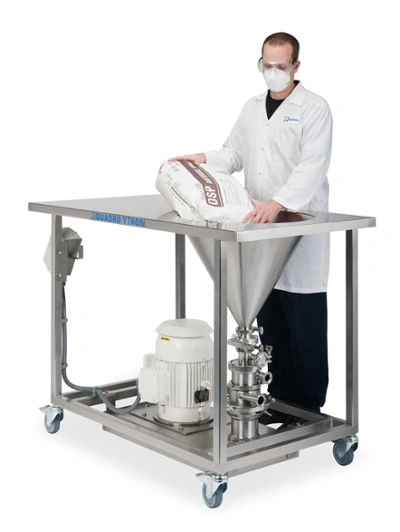

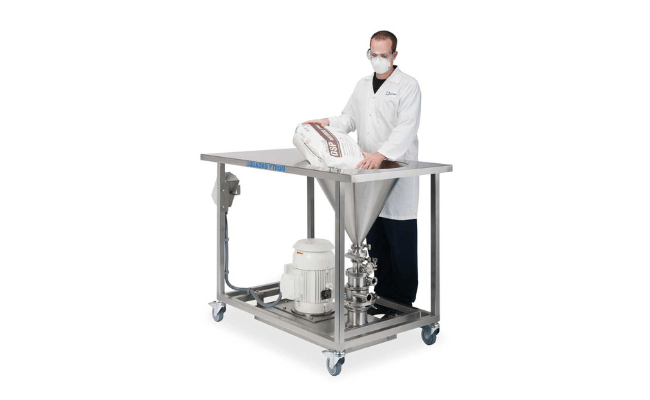

  • Optional ergonomic powder dump table integration

  • Designed to meet 3-A® Sanitary Standards

  • A full-flow ball valve maintains the mass flow of powder through the hopper for effective ball-milling techniques

  • High speed incorporation rates for dramatic batch time savings

  • Product yield is maximized and wastage is reduced or eliminated

  • Accurately scalable from pilot to production volumes

  • Stainless steel construction well suited to sanitary processing or to wash down duty environments

  • Unique maintenance-friendly features such as no-tool disassembly

  • Optional Uniform Film Interface (UFI) hopper for continuous powder dispersion, high solids incorporation rates, reduced aeration and controlled metering of powders for consistent concentration

Typical applications:

Personal Care and Cosmetics

  • Hair Care (Conditioning, Coloring, Shampoo, Styling Gel)
  • Skin Care (Cream, Lotion, Sunscreen, Shower Gel, Antiperspirant, Deodorant, Shave Cream, Facial Mask)
  • Cosmetics (Eye Liner, Eye Shadow, Lipstick, Gloss)
  • Dental Care (Mouthwash, Toothpaste, Denture Adhesive)


  • Yogurt, Flavored Milk, Ice Cream
  • Functional Beverages/Additives
  • Sauce, Soup, Salad Dressing
  • Jam, Marmalade, Syrup

Pharmaceutical

  • Tablet Coating Solutions
  • Topical Creams, Ointments, Lotions & Gels
  • Oral Suspensions
  • Ophthalmic Lubricants
  • Dental Treatment Gels/Dental Impression Material


  • Enhanced Oil Recovery
  • Pulp and Paper Polymer Solutions
  • Industrial Soaps, Dishwashing Detergents, Household Cleaners
  • Fabric Softeners, Laundry Detergents
  • Pesticides, Insecticides
  • Solvents, Lubricants
  • Paint, Coatings, Dry Wall

Learn more with our technical information:

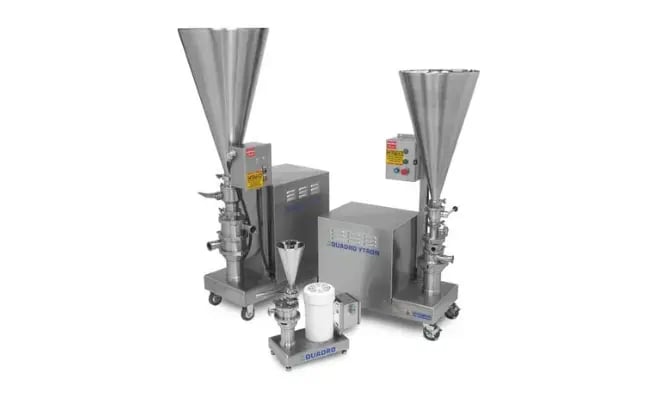

  • Available in four models: ZC0, ZC1, ZC3, ZC5

  • ZC Liquid Capacity: 3 – 400 gpm (11 – 1500 l/min)

  • ZC Powder Capacity: 30 – 1000 lbs/min (14 – 453 kg/min)

  • CIP cleanability options available for all models

* Capacities are product/process dependent and interrelated to equipment setup.
  • Power: 3 – 60hp (2 – 45kW)

  • CDS Liquid Capacity 2 – 70 gpm (7.5 – 265 l/min)

  • CDS Powder Capacity: Up to 50% by weight, depending on product/application

Related resources for the Quadro Ytron® ZC inline powder disperser:

Product downloads

Quadro Ytron® ZC Disperser Brochure

Download the Brochure



Liquid Mixing - R&D Lab Testing Information Package

Download

Related content

What is powder dispersion?
Inline processing technology solves the problems that can occur when dispersing problem powders into liquids

Cosmetic Manufacturing Equipment
Value-added powder dispersion, hydration, production of stable emulsions, and working with rheology modifiers/thickening agents.

Pharmaceutical mixing
From simple liquid blending to complex submicron emulsions — in sanitary, all-stainless steel construction.

Efficiently work with emulsifiers, rheology modifiers, gums, thickeners and stabilizers.









See the Quadro Ytron® ZC in action:

Veegum® T Dispersion - Quadro Ytron ZC Powder Disperser



Quadro Ytron ZC1 Cocoa Powder Dispersion



Quadro Ytron ZC  Carbon Black and Motor Oil Powder Dispersion



Quadro Ytron ZC Sodium Citrate Dispersion - Hopper vs Wand



OUR RANGE OF Powder dispersion and liquid mixing equipment

We offer solutions that provide reliable and repeatable results in the following areas:

Inline Emulsifier Mixer

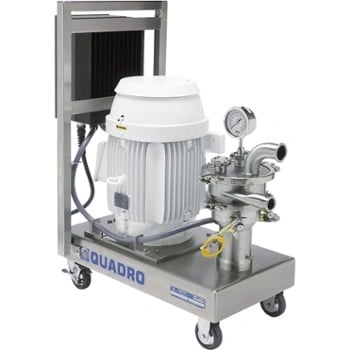

High Shear Homogenizer
