        In-line Emulsifier Mixer

        High Shear Single-Pass Emulsification

        The Quadro Ytron® Z Inline Emulsifier delivers unparalleled consistency and control of high shear process applications such as emulsifying, homogenizing, wet grinding, deagglomeration and fine solids dispersing.

        Request a Quote Download the Brochure

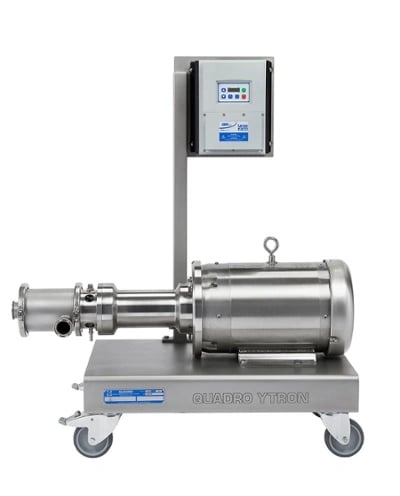

        Quadro Ytron Z rotor stator emulsifier

        High Differential Velocities

        The Ytron® Z Emulsifier high speed, high shear emulsifying mixer achieves repeatable product quality at production efficiencies/outputs exceeding those of conventional high shear mixers such as in-tank rotor-stator mixers, colloid mills and shear pumps. As many as three stages of sequential rotor-stator mixer tooling operate at high differential velocities with numerous shear zones working on the product as it flows through the inline emulsifier mixer. This ensures that no product passes through the machine without receiving the targeted shearing action.

        High Degree of Process Flexibility

        High shear emulsifier tooling for the Ytron® Z Emulsifier is available in a variety of slot sizes, which allows for a high degree of fine-tuning or multi-process changeovers. Through proper rotor-stator selection (aided by our application engineering team) and by varying/controlling the speed of the high shear emulsifier mixer tooling, the mixing process can be scaled with industry-leading precision.

        Gallery

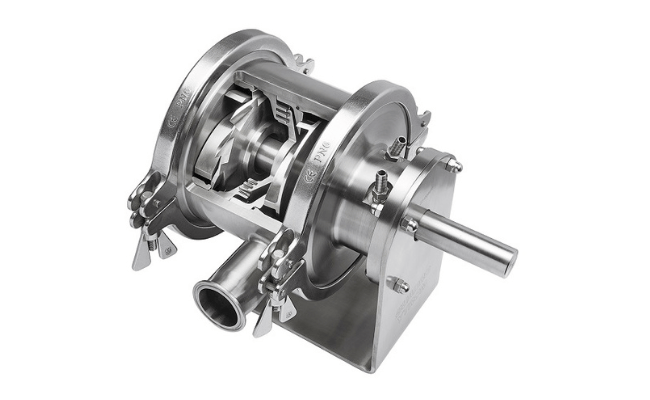

        rotor-stator-mixer-wide

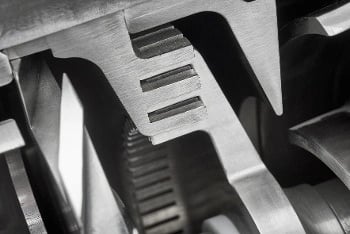

        Quadro-Ytron-Z-high-shear-rotor-stator-tooling_0-1-1
        quadro-ytron-inline-emulsifier-mixer_blog

        The Quadro Ytron® Z

        For high shear process applications such as emulsifying, homogenizing, wet grinding, deagglomeration and fine solids dispersing.

        Learn more by downloading our product brochure.

        Download the Brochure
        ytron-z-emulsifier-brochure-cover
        QUADRO YTRON® Z

        Features

        • Sanitary design with clamped housings for easy cleaning and optional CIP executions.
        • Single and double mechanical seal options provide for high-temperature, high-pressure performance.
        • Multiple tooling configurations available for process optimization.
        • Stainless steel construction on wetted inline emulsifier mixer processing parts.
        • Optional variable speed control for maximum process flexibility.
        • Standard stainless steel base with locking casters well suited to sanitary processing or to wash down duty environments.
        QUADRO YTRON® Z

        Benefits

        • Improved Performance - Multiple-row, toothed rotor-stator tooling improves high shear emulsifying mixer performance and eliminates product bypassing
        • Increased Capacity - Toothed-style rotor-stator tooling offers increased capacity over colloid mills and many other inline milling technologies
        • Enhanced Product Quality - Improved “sheen” and product texture
        • Cleanability - Designed to meet 3-A® Sanitary Standards for easy cleaning
        • Versatility - The variety of available tooling enables a unique solution for each mixing application
        • Time Savings - An equal application of shear energy avoids over-processing, and often achieves targeted results in a single pass
        • Precise Scalability - Use of the Ytron® Z Emulsifier mixer allows a greater degree of precision in scaling any process from lab to pilot to production capacity.
        QUADRO YTRON® Z

        Technical Specifications

        • Available in four models: Z0, Z1, Z3, Z5
        • Power hp: 3 – 60 (2.2 – 45kW)
        • Liquid Capacity: 15 – 300 gpm (60 – 1150 l/min)

        * Capacities are product/process dependent and interrelated to equipment setup.

        Typical Applications

        QUAL-Food-Icon Personal Care and Cosmetics

        • Hair Care (Conditioning, Coloring, Shampoo, Styling Gel)
        • Skin Care (Cream, Lotion, Sunscreen, Shower Gel,
        • Antiperspirant, Deodorant, Shave Cream, Facial Mask)
        • Oral Care (Toothpaste & Dental Products)

        QUAL-Food-Icon Food

        • Sauce, Soup, Salad Dressing & Mayonnaise
        • Yogurt, Milk, Ice Cream, Chocolate Milk
        • Process Cheese & Cultured Products
        • Jam, Marmalade, Syrup
        • BBQ Sauces & Condiments
        • Juice & Other Beverages

        QUAL-Food-Icon Pharmaceutical

        • Emulsifying Creams/ Lotions
        • Suspension Dispersion for Ointments/Gels
        • Oral Suspensions (Liquid/Syrup)
        • Wet Milling Pigment Suspensions/Tablet Coating Media
        • Pre-Processing Injectables/Nutritional Supplements

        QUAL-Food-Icon Chemical

        • Soap, Dishwashing Detergent, Household Cleaners
        • Fabric Softener, Laundry Detergent
        • Fertilizers, Fungicides
        • Caulking, Adhesives, Solvents, Sealants
        • Paint, Coatings, Drywall Compounds
        • Lacquers & Resins
