Low Shear Jet Mixer

Efficient mixing & blending of liquids and suspended solids.

The Quadro Ytron® low shear industrial tank mixer is highly efficient for in-tank liquid blending, solids suspension and dissolving applications.

Request a call back

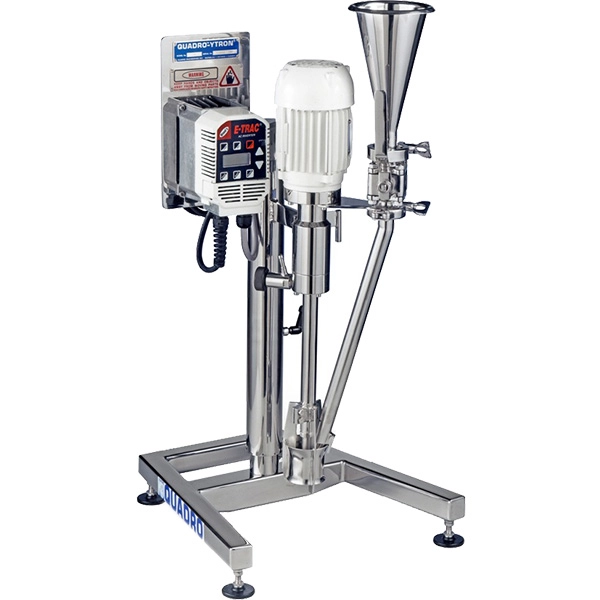

Quadro Ytron® Jet Mixer for low shear in-tank mixing

This unique low shear industrial tank mixer changes the traditional in-tank flow pattern to provide more efficient mixing and blending of liquids and suspended solids. The Y-Jet mixing pattern does not create a radial flow pattern or liquid vortex. Thus, this low shear industrial mixer does not require difficult-to-clean tank baffles, which means that air entrainment is virtually eliminated.

Uniform Velocity Profile

The Quadro Ytron® Liquid Jet Mixer produces a uniform velocity profile throughout the product mix, with no stratification or dead areas. This feature improves heat transfer rates and reduces batch blending times by as much as 80%. This makes the Y-Jet in-tank mixer the ideal low shear industrial tank mixer for suspension and re-suspension of high-settling-rate solids.

Quadro Ytron® C-Type Jet Mixer

This side-entry variant offers all the benefits of our standard in-tank jet mixer with enhanced sanitary features that offer more reliable CIP operation. Easy-to-clean line-of-sight access to all product contact areas and compliance with 3-A® Sanitary Standards make the C-Type our best sanitary, low shear tank mixer for food processing & beverage applications.

Jet Mixer Principles

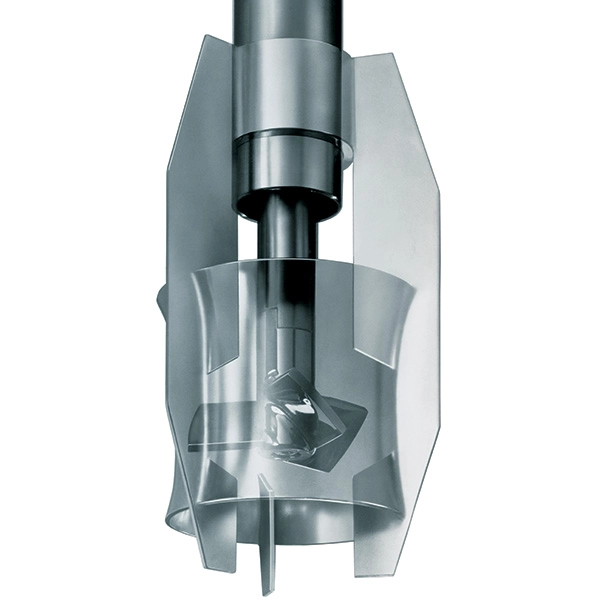

This industrial tank mixer technology incorporates a specially designed rotor/stator mixing head to create a pure axial flow pattern. An axial flow impeller within a unique, finned stator eliminates radial flow to deliver a strong axial discharge. The product is delivered directly to the head for single-pass in-tank processing. The Y Jet Mixer is mounted near the tank wall to ensure strong top-to-bottom roll that results in a uniform velocity profile of the tank contents, without vortexing or air entrainment. Together, these features combine to help your product achieve superior blending in an industrial tank mixer.

Dust-Free Powder Handling for In-Tank Mixing

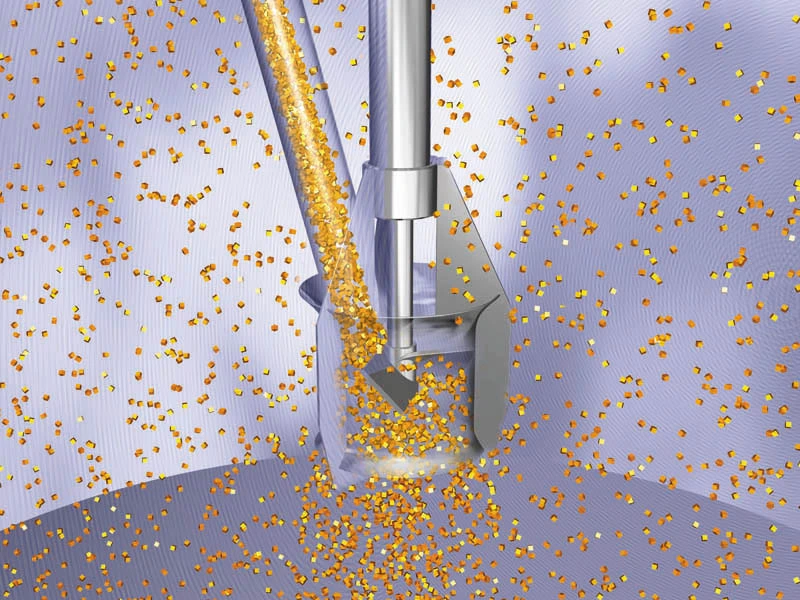

When your application requires dust-free powder blending, the Quadro Ytron® Jet Mixer offers a variety of powder handling methods for delivering powders to the bypass tube. This maximizes in-tank mixing performance, reduces health and safety concerns, minimizes cross-contamination, and eliminates the need for expensive material conveyors.

Quadro Ytron low shear jet mixer

The Benefits of the Low Shear Industrial Tank Mixer

Axial Flow Pattern - Vortexing, air entrainment and hard-to-clean tank baffles are eliminated.

Time Savings - Blend times reduced by as much as 80%.

Improved Performance - Eliminates problems with stratification and dead mixing areas throughout the vessel, improving heat transfer rates versus other low shear industrial mixers.

Qual-equipment-testing-banner-_1_

In detail

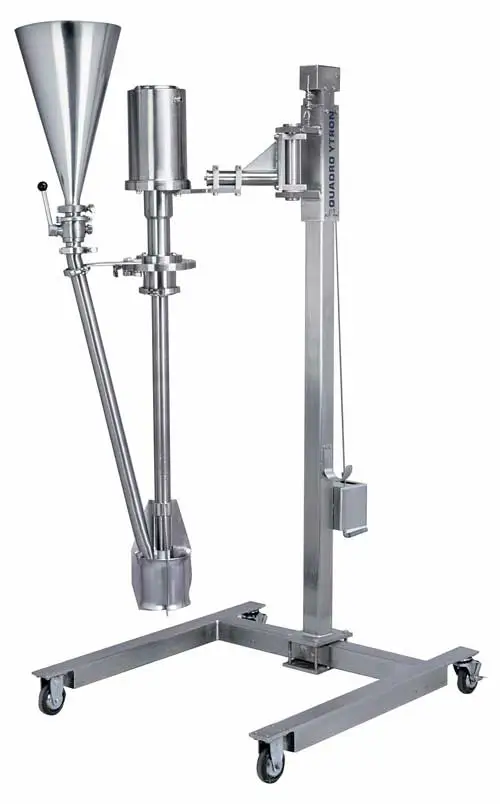

Quadro Ytron® Low Shear Industrial Liquid Jet Mixer

See the Quadro Ytron® Industrial Tank Mixer with our gallery:

Features of the Quadro Ytron® Low Shear Industrial Tank Mixer

  • Unique rotor-stator tooling for powerful axial flow.

  • Stainless steel contact components for broad compatibility.

  • Seal options include V-ring, double Varilip, single and double mechanical seals.
  • Innovative bypass tube for powder dispersion directly into the shear zone to minimize agglomerate formation.

  • Optional variable speed drive for best process optimization.

Typical applications:

Pharmaceutical

  • Pigment Dispersions
  • Vitamins & Mineral Slurries
  • Antacid Suspensions
  • Tablet Coating Preparation
  • Medicated Syrups
  • Bentonite Clay, Sodium Alginate & Starch Suspensions


  • Sauce, Soup, Salad Dressing
  • Yogurt Mixes, Milk Powder, Ice Cream, Chocolate Milk
  • Syrup, Pectin, Guar, Gelatin, Cocoa, Sugar
  • Condiments, Juices, Fruit Blending

Personal Care and Cosmetics

  • Hair Care (Conditioning, Shampoo)
  • Skin Care (Cream, Lotion)
  • Makeup Base, Liquid Foundation
  • Oral Care (Toothpaste)


  • Inks, Paints, Coatings, Pigment Suspensions
  • Resins & Bonding Compounds
  • Calcium Carbonate, Diatomaceous Earth, Carbon Black
  • Oil Field Fluids

Learn more with our technical information:

  • Available in five models: Y0, Y2, Y3, Y4, Y5.

  • Liquid Batch Size: 5 – 60,000 gal (10 – 228,000 liters).

  • Powder Incorporation Rate: Optional feature, and dependent on product/application.

* Capacities are product/process dependent and interrelated to equipment setup.

View the Quado Ytron® brochure:

Download the Brochure

Related resources for the Quadro Ytron® Low Shear Industrial Tank Mixer:

Quadro Ytron® Brochure

Download the Brochure



Liquid Mixing - R&D Lab Testing Information Package

Download

See our equipment in action:

HubSpot Video



HubSpot Video



HubSpot Video



HubSpot Video



OUR RANGE OF EQUIPMENT

Achieve reliable and repeatable results for liquids and powders with our range of Industrial High Shear Mixers.

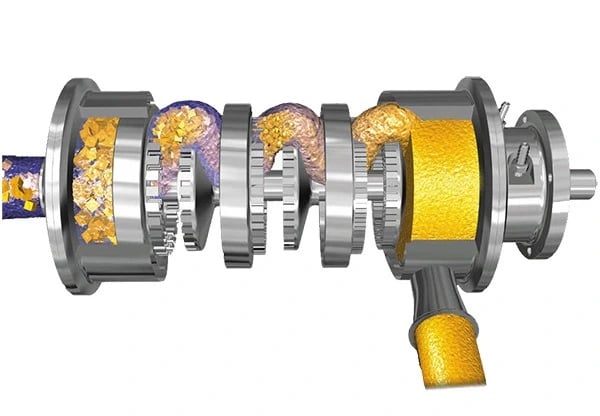

Inline Emulsifier Mixer

Inline Emulsifier Mixer

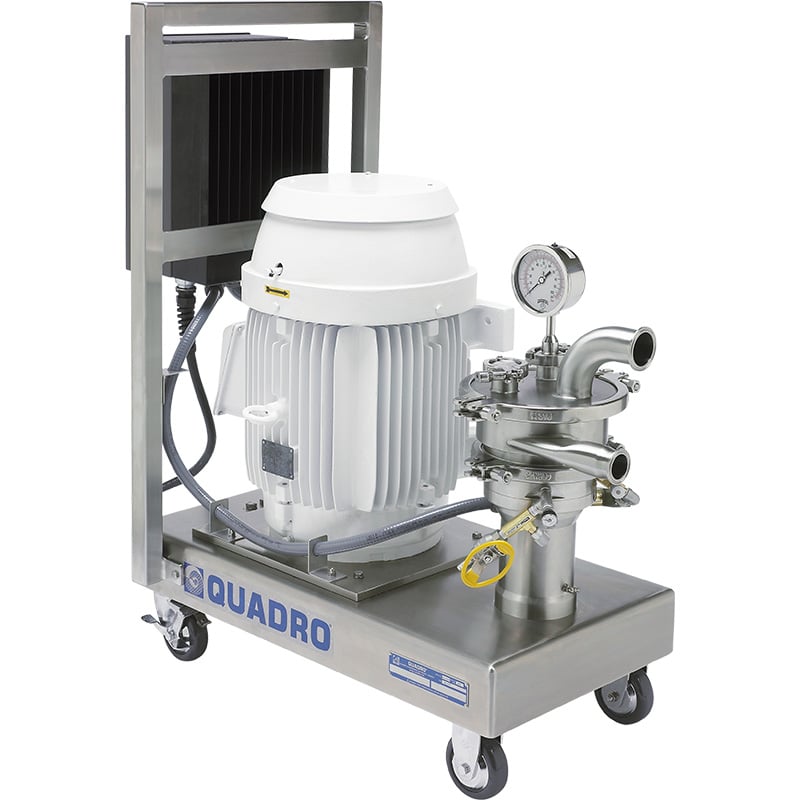

High Shear Homogenizer & Wet Mill

High Shear Homogenizer

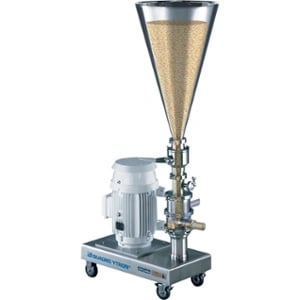

High Speed Powder Disperser
